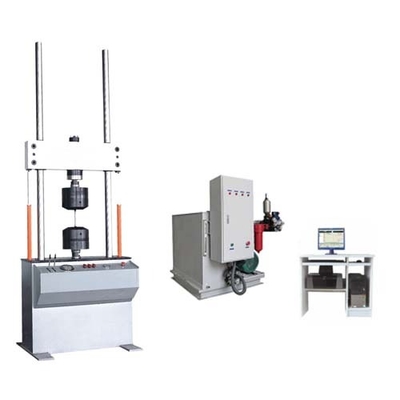

The machine is mainly used for materials and components. PWS Series Mechanical Spring Metal Fatigue Testing Machine Physical Low Price

Product Application

Electro-hydraulic servo dynamic and static universal testing machine is produced according to the dynamic servo test technology, and utilizes the design methods of unitization, standardization and modularization, which enhance the stability and reliability of the system. The machine is mainly used for the dynamic and static mechanics performance tests to material and parts, equipped with corresponding accessories, it can do tensile, compression, low cycle and high cycle, crack growth tests and other mechanics tests for various kinds of materials, and it widely used in the fields of aviation and aerospace, ship-making and military industries.

Main Features

1. The load frame is double columns framework structure, and the servo linear actuator is at the bottom.

2. The crosshead elevating by hydraulic force, pre-tensile stress clamping and hydraulic loosening guarantee the stability and reliability of the test and meanwhile guarantee the crosshead locked during non-test status.

3. Shape of the crosshead has the feeling of three dimensions and looks terrific.

4. Surface of double columns is plated with chrome, which make it looks good as well as anti-abrasive.

5. Servo linear actuator is at the bottom,in which there is a LVDT displacement transducer, out of which there is a servo valve, and equipped with a precise filter and accumulator to constitute a servo module.

6. Servo valve is the special high response two grades servo valve

7. Applied NCA series linear actuator with the features of lower damp, high response, long life and big clearance design;

8. The seal parts of servo linear actuator adopt the special high –speed seal parts.

9. Equipped with high precious load cell

Machine Parts

Name: Hydraulic servo pump station.

Brand: NACHI Company

Original: Japan

The oil pump adopts the internal gear pump of NACHI Company of Japan. The pump adopts involute internal meshing gear meshing transmission, low noise, excellent durability and long life

Machine Parts

1. Connect the oil source and the relay station of the actuator, and further ensure the stability of the system and the cleanliness of the hydraulic oil;

2. It is equipped with a precision filter with a filtering accuracy of 3μ (with a blockage alarm device), a oil separation channel with pipeline input and output, etc.

3. Piping system: high pressure hose. Oil source to oil separator, length 6m; oil separator to actuator: 4m
